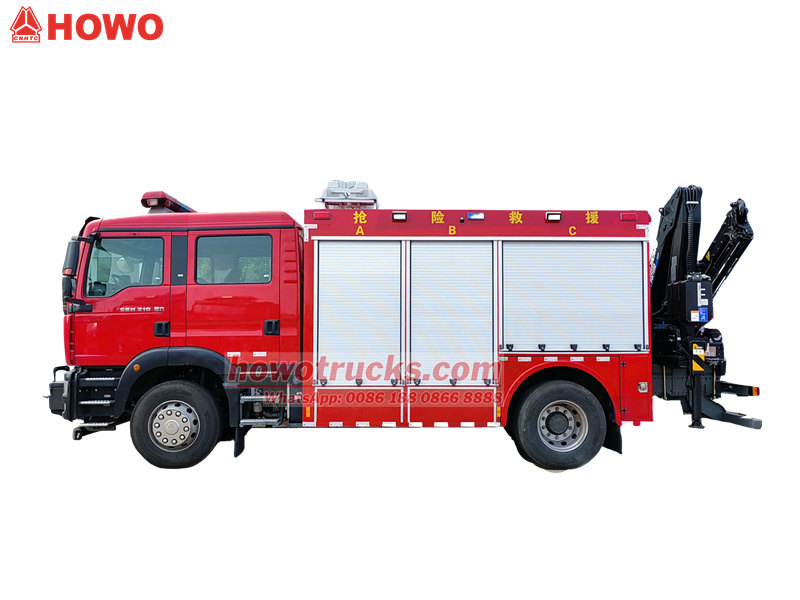

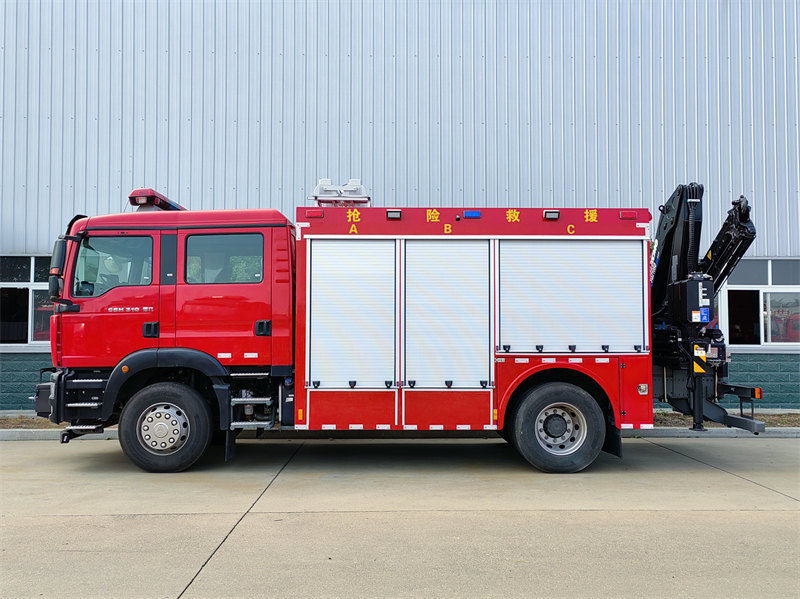

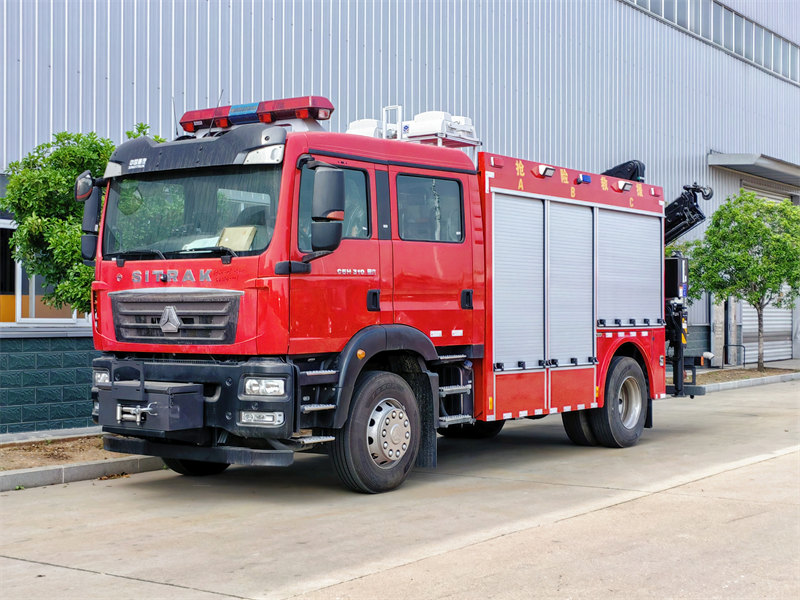

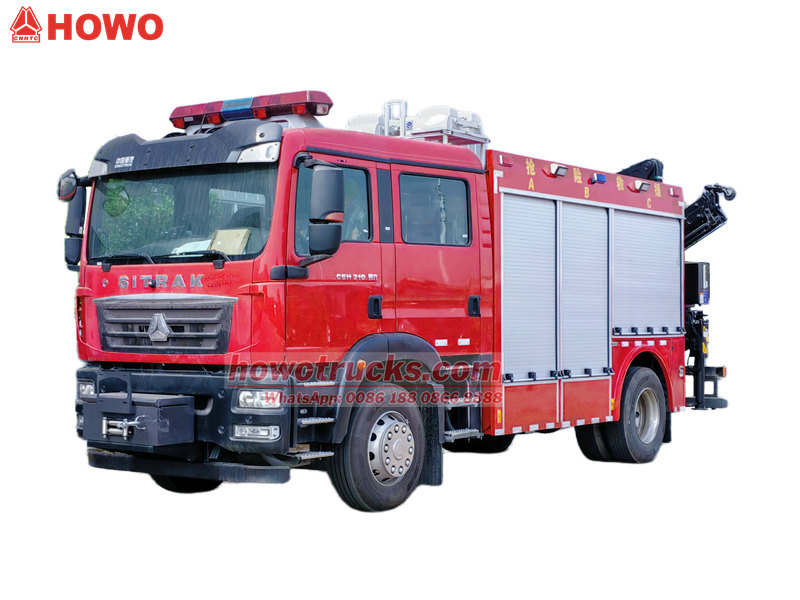

The Sinotruk emergency rescue fire truck with crane, built on the high-quality Howo TX chassis, combines superior power with environmentally friendly emissions. It boasts all-wheel drive capability, tackling various challenging terrains. Equipped with an independent power generation system and emergency lighting system, it provides multi-angle, all-around illumination to quickly illuminate rescue routes during a fire. The control panel offers selectable languages and various optional configurations to meet different needs.
القدرة على العمل :
100 minنوع الكابينة :
Howo TX double cabinنظام القيادة :
4x2قاعدة العجلات (مم) :
4600خاص بالمحرك :
350 Hp / MC07H.35-60علبة التروس :
HW19710,10 forwards & 2 reversesالمحور الأمامي (كجم) :
7500المحور الخلفي (كجم) :
13000The Sinotruk emergency rescue fire truck with crane, built on the high-quality Howo TX chassis, combines superior power with environmentally friendly emissions. It boasts all-wheel drive capability, tackling various challenging terrains. Equipped with an independent power generation system and emergency lighting system, it provides multi-angle, all-around illumination to quickly illuminate rescue routes during a fire. The control panel offers selectable languages and various optional configurations to meet different needs. This Howo heavy fire rescue lighting truck provides robust protection for fire emergencies, demonstrating outstanding performance and flexibility. The Howo TX cabin is equipped with air conditioning to ensure the comfort of the driver and emergency personnel in any weather conditions.
*Howo TX Heavy Fire Rescue Lighting truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Best Choice,Howo Fire Trucks
|
Howo Emergency Rescue Fire Truck |
||
|
General |
Vehicle Brand |
CS TRUCKS |
|
Chassis Model |
Howo |
|
|
Overall Dimension |
8600 * 2550 * 3150 mm |
|
|
GVW / Kerb Weight |
25,000kg / 12,300kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Howo |
|
|
Model |
MC07H.35-60 |
|
|
Power |
350 HP (257kW) |
|
|
Displacement |
7.36L |
|
|
Emission Standard |
Euro 6 |
|
|
Chassis |
Drive Type |
4X2 |
|
Transmission |
10-speed levers with 2 reverse |
|
|
Wheelbase/No. of axle |
4600 mm / 2 |
|
|
Tire Specification |
12.00R20 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Lighting system technology |
Light Source Type |
LED and other high brightness, low energy consumption light sources |
|
Color Temperature |
＞2700K |
|
|
Luminous Flux |
Evacuation passage ground illumination ≥1.5 lx |
|
|
Stairwell ≥6.0 lx |
||
|
Coverage |
Center or rear |
|
|
Adjustable angle robotic arm (horizontal ±180°, vertical ±90°) |
||
|
Multi-directional lighting，the coverage radius can reach more than 100m |
||
|
Centralized Power Supply |
Continuous lighting time ≥ 90 minutes |
|
|
Control Panel |
English or Your language |
|
|
Electrical System |
Battery |
Lithium iron phosphate battery |
|
Capacity |
100 minutes |
|
|
Security |
Fireproof and anti-leakage design |
|
|
Voltage |
Converted to 220V AC through inverter |
|
|

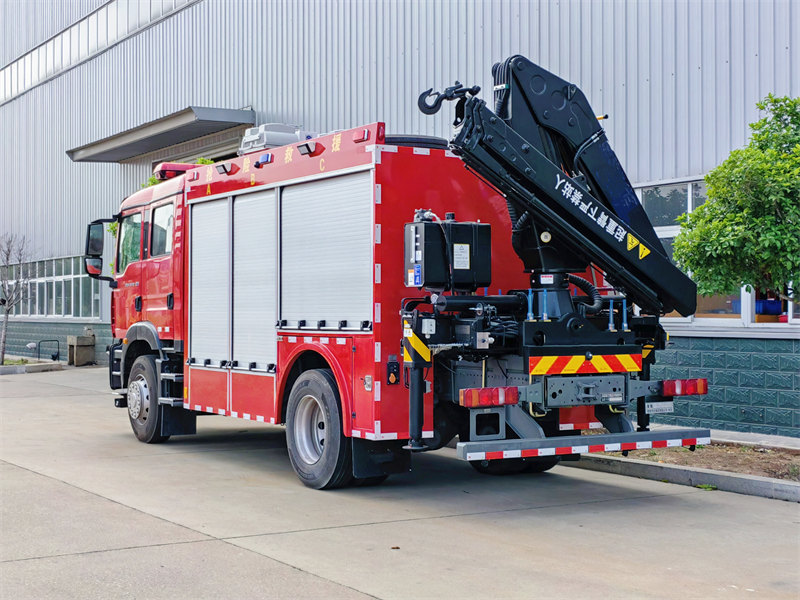

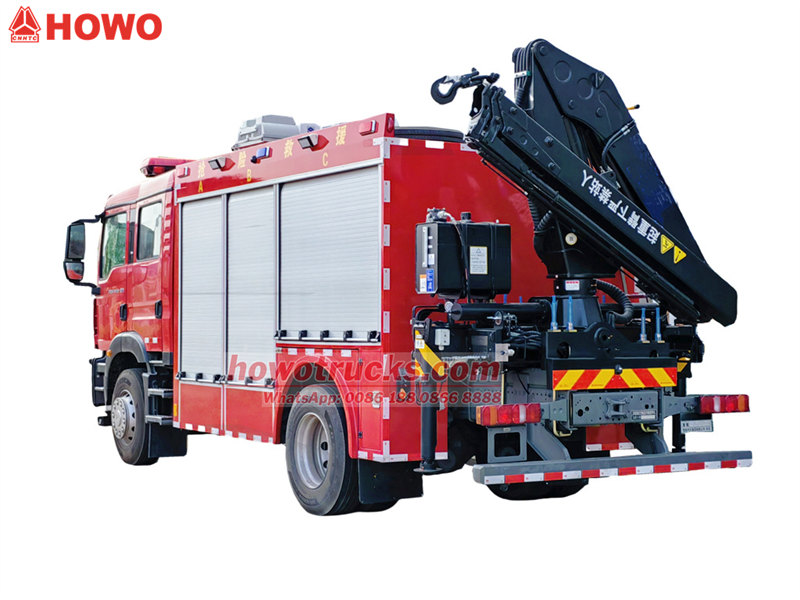

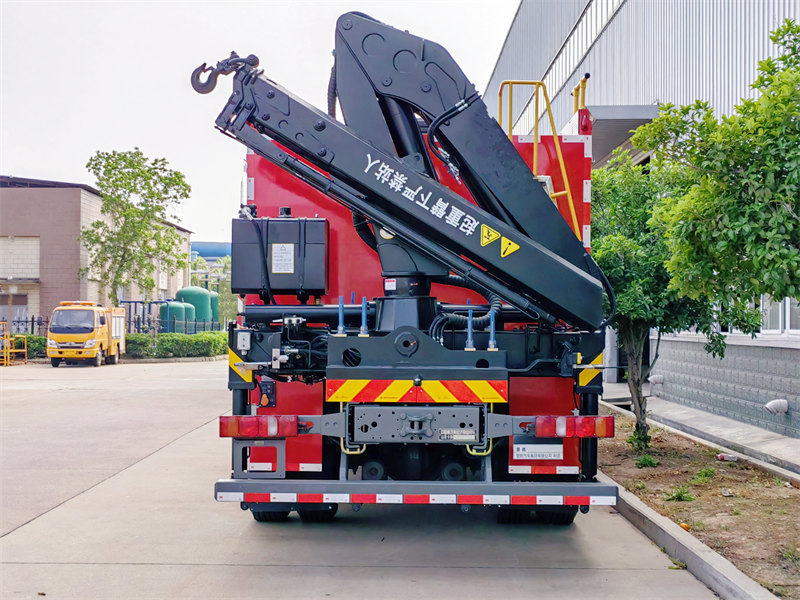

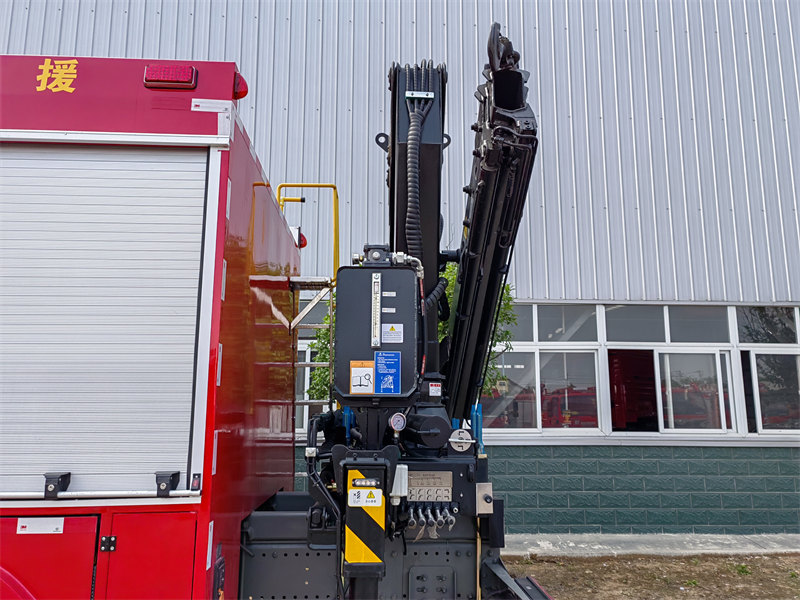

Knuckle Crane |
Crane Brand |
CS Trucks Group |
|
Crane Weight |
1796 kg |
|
|
Max. Lifting weight |
6790 kg |
|
|
Max. Working Height |
6.1 m |
|
|
Max oil flow of hydraulic system |
25 L/min |
|
|
Rotation Angle |
520°, all rotation |
|
|
Installation Position |
Rear of the truck |
|
|

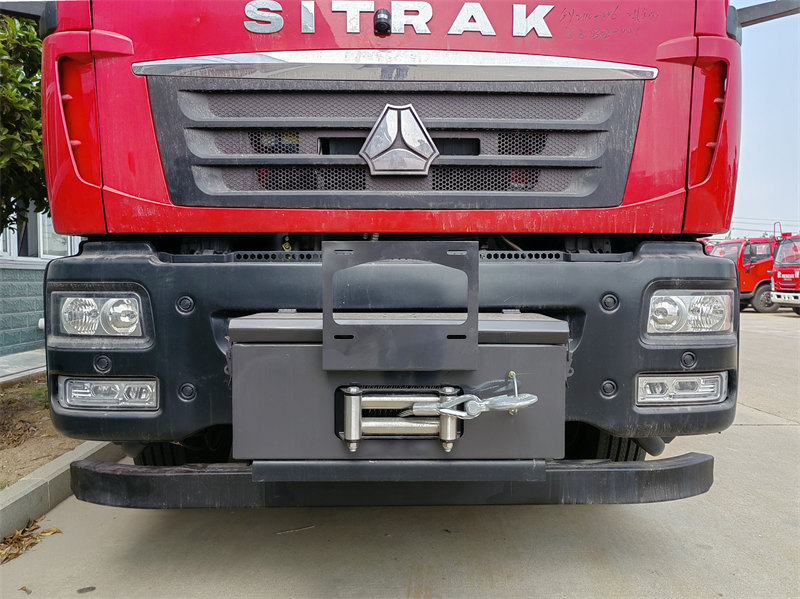

Electric Winch |
Control Type |
Electric control box |
|
Distance |
35m |
|
✦Ⅱ.Reliable Power and Superior Off-Road Capability «««
♦ MC07H.35-60 diesel engine, with a maximum power of 350 horsepower, balancing power output with environmental requirements.
♦ Metallic paint finish, providing corrosion and wear resistance, suitable for long-term outdoor operation.
♦ Capable of adapting to complex terrain and harsh weather conditions, whether in narrow urban roads, rural dirt roads, or complex scenarios such as flooding and mud.
♦ Employs high-brightness, low-energy light sources such as LEDs, with a color temperature >2700K, ensuring lighting brightness meets emergency rescue standards.
♦ Ground illuminance in evacuation routes ≥1.5lx, stairwell illuminance ≥6.0lx, clearly illuminating the rescue area and providing ample light support for rescue operations.

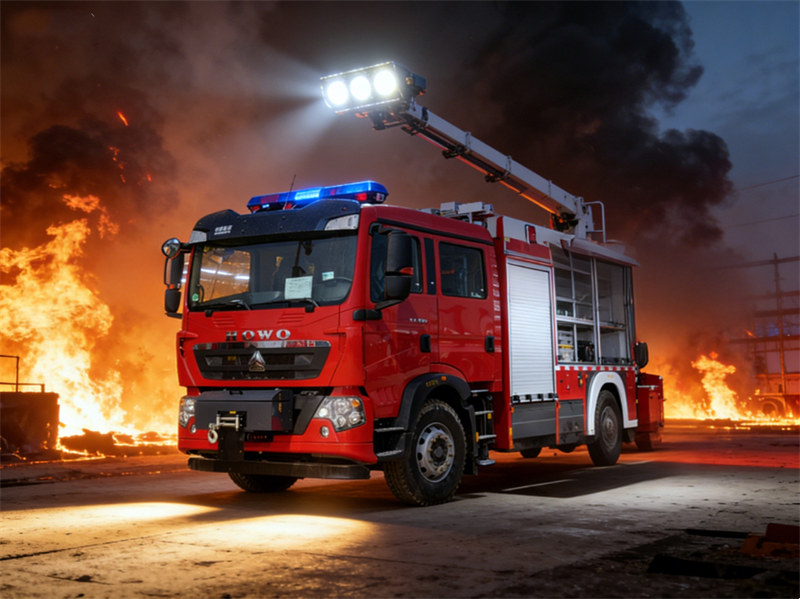

♦ Lighting coverage can be selected for the middle or rear of the vehicle, equipped with an adjustable robotic arm (horizontal ±180°, vertical ±90°), supporting multi-directional lighting with a coverage radius exceeding 100 meters.

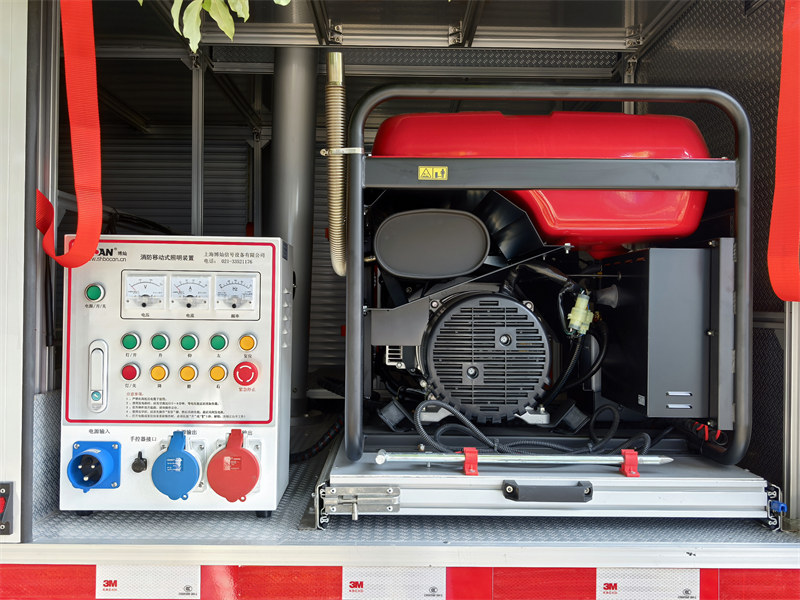

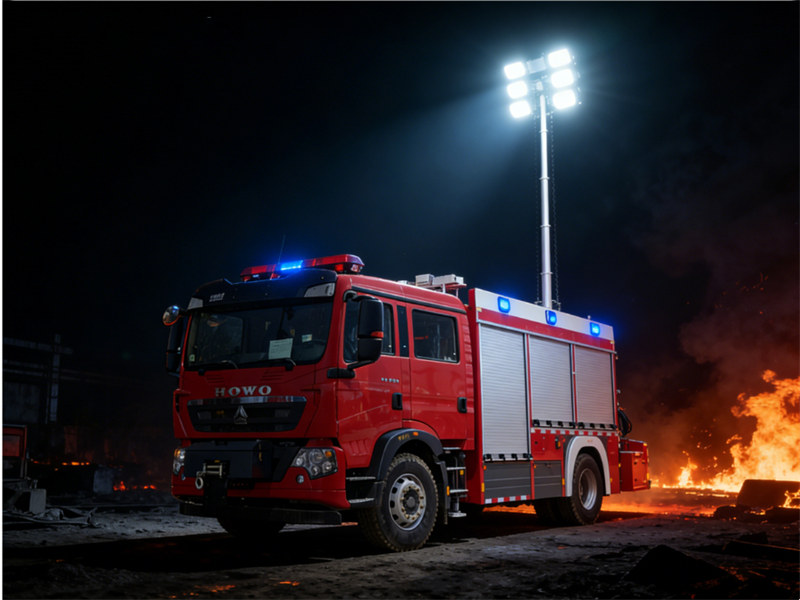

♦ Integrates a 30kW generator set and a lifting lighting system, with a mast height ≥7 meters, supporting 360° pan-tilt rotation and wireless remote control.
♦ Equipped with a centralized power supply system, providing continuous lighting time ≥90 minutes, meeting the needs of extended rescue operations.
♦ The electrical system uses lithium iron phosphate batteries with a capacity supporting 100 minutes of power supply, featuring fireproof and leak-proof design.
|

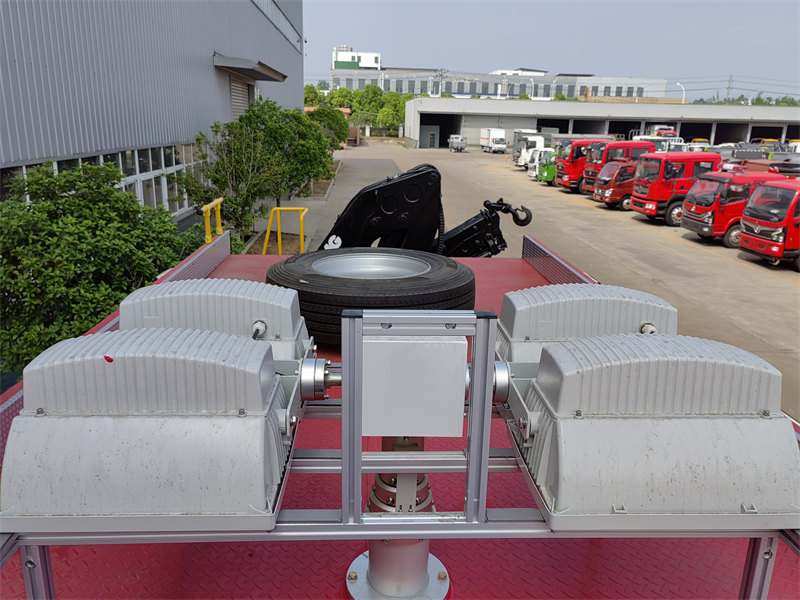

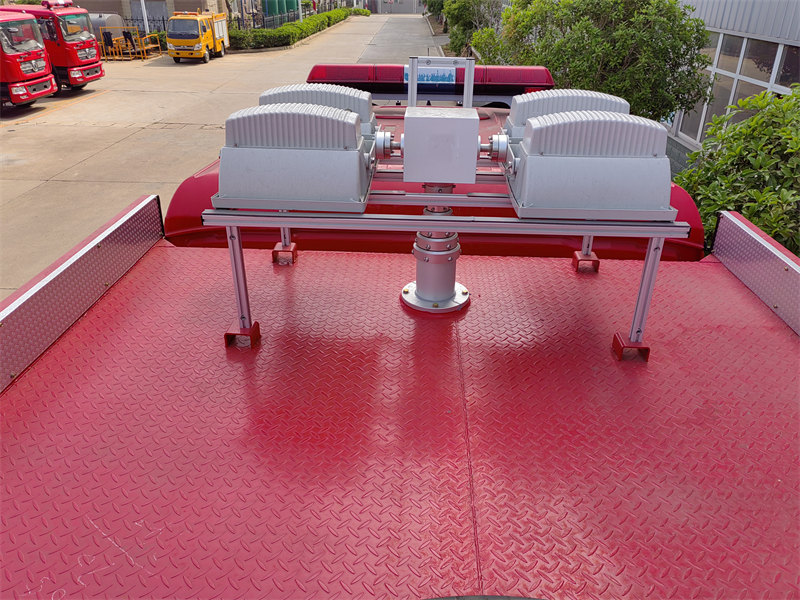

Lighting System |
|
|
Height |
≥7 m |
|
Rotation Angle |
360° |
|
Lighting Coverage Angle |
Horizontal ±180°, Vertical ±90° |
|
Coverage Radius |
100 m |
|
Lighting Time |
≥100 min |
|
Electric Winch |
|
|
control type |
Electric control box |
|
Distance |
35m |
|
Kuncle Crane |
|
|
Crane brand |
CS Trucks Group |
|
Crane weight |
1796 kg |
|
Max. lifting weight |
6790 kg |
|
Max. working height |
6.1 m |
|
Max oil flow of hydraulic system |
25 L/min |
|
Rotation angle |
520°, all rotation |
|
Installation position |
Rear of the truck |
♦ The vehicle adopts a modular and multi-functional integrated design, with a high-strength carbon steel frame chassis.
♦ It also possesses strong multi-mission expansion capabilities, capable of carrying hydraulic demolition tool sets, life detectors, and other rescue equipment.
♦ Reserved interfaces support drone-assisted reconnaissance, breaking the limitations of single lighting functions and achieving integrated "lighting + rescue".
♦ Adaptable to different types of emergency rescue scenarios, improving rescue efficiency.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
